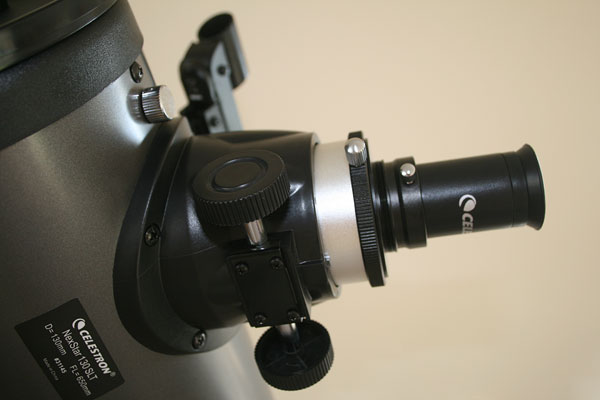

1 standard 25mm eyepiece with draw tube
about 25% extended |
|||||

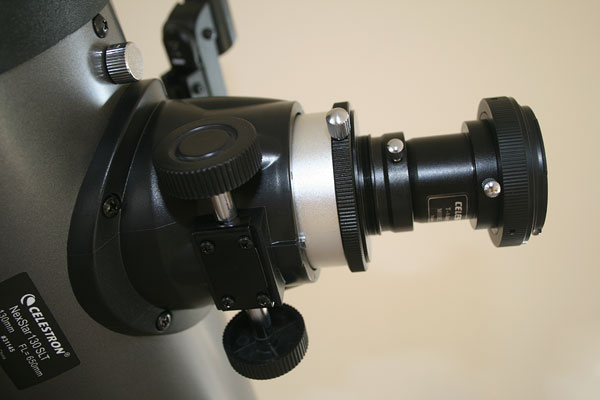

2 T-adapter and EOS T-ring replacing the eye-piece |
|||||

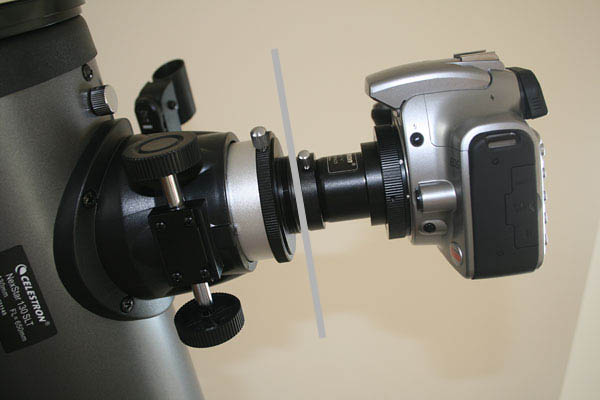

3 EOS 100D attached to the T-adapter/ring The grey line shows (very approximately) where the prime focus is |
|||||

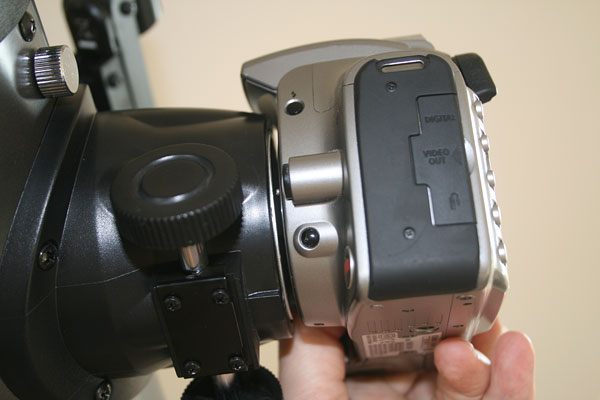

4 and this shows all the existing eyepiece hardware removed, and the EOS positioned such that the focal plane is at the prime focus |
|||||

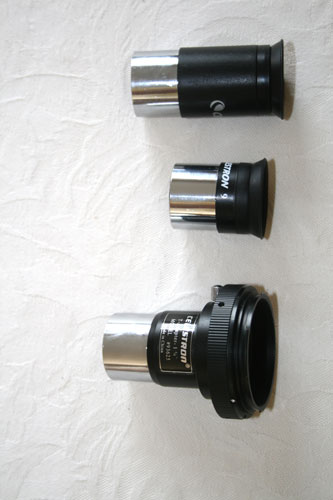

5 and for completeness, here are the 25mm, 9mm and T-adapter/ring laid out |
|||||
